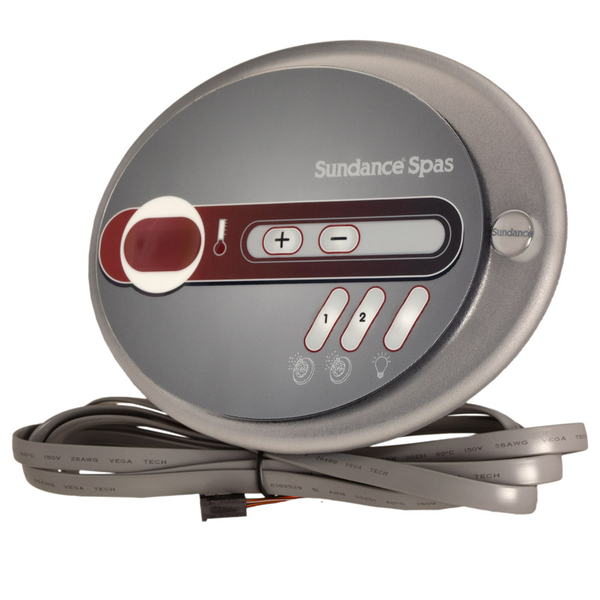

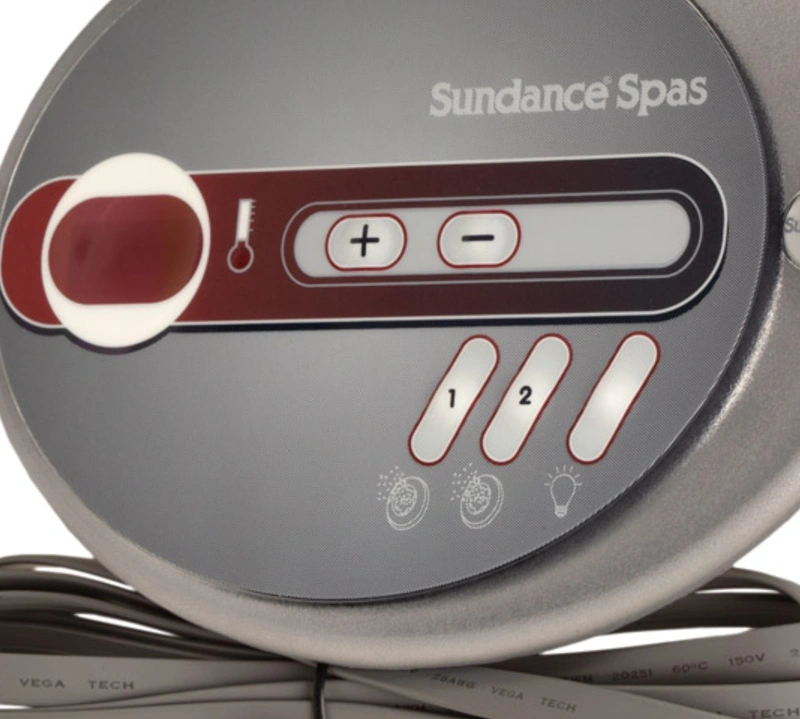

Sundance Jacuzzi 680 Series 5 Button Topside Control 6600-682

Topside Control, Sundance 680 Series, 2-Pump SMT, 2013

This keypad is compatible with the following series/system(s) - Sundance Proprietary 680 Systems.

Found in the following spa models - Sundance Models (2014+) McKinley, Ramona (2012-2013) 680 Edison, Peyton (2013-2014) 680 Hartford, Hawthorne (2008-2013)

Specifications

Brand:

Jacuzzi Spas, Sundance Spas

Model:

680 Series

Number of Buttons:

5

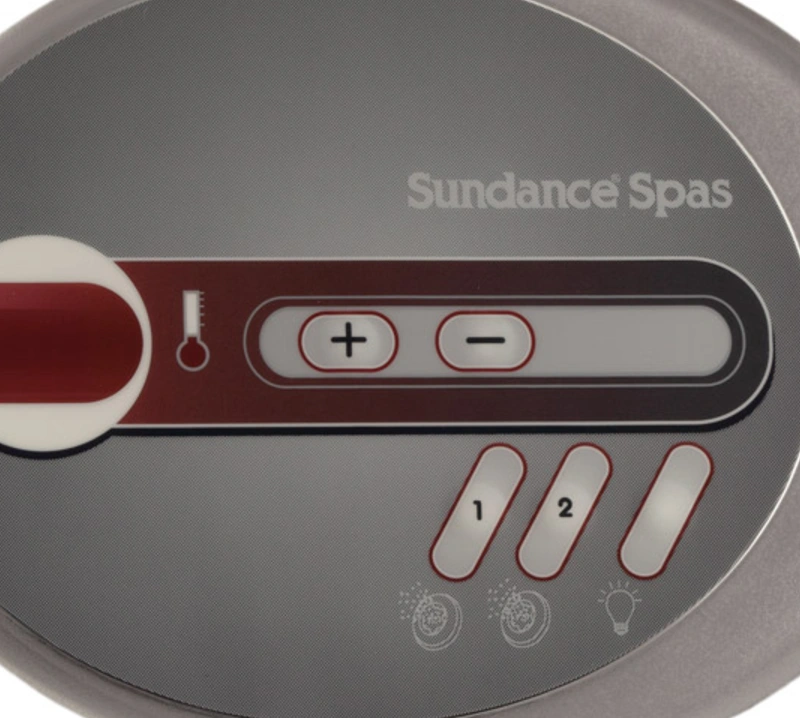

Button Configuration:

Plus-Minus-Jet1-Jet2-Light

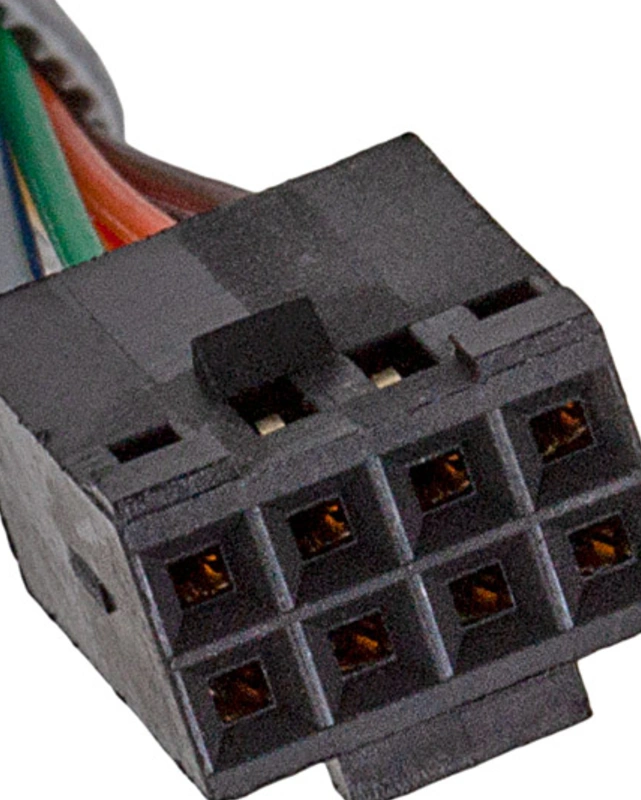

Cord Connection:

Phone Jack Style Plug

Display Type:

LED

Features:

Designed for 2 Pump Systems
